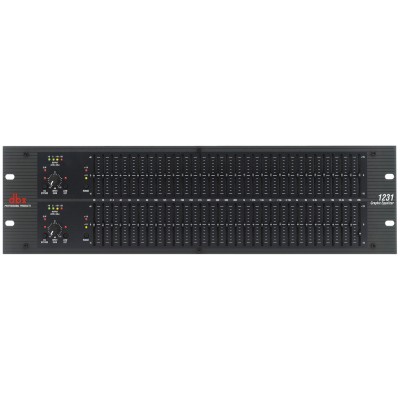

DBX 1231 Dual Channel 31-Band Equalizer

DBX 1231

Dual Channel 15-Band Equalizer

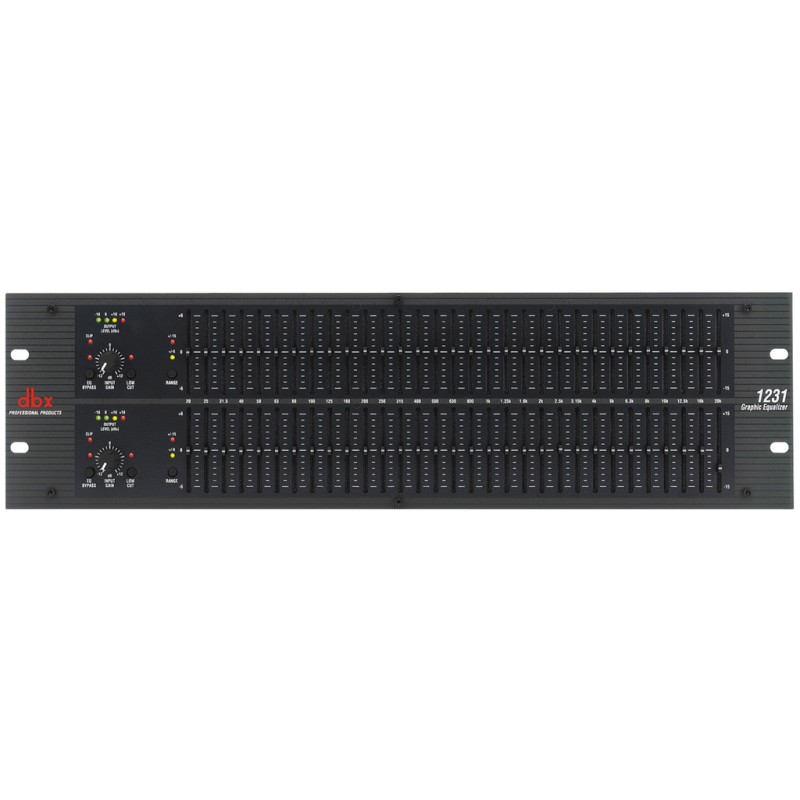

The dbx® 12 Series was designed to meet the needs of the most demanding sound reinforcement environments while offering the simplicity of straightforward controls. 1231 provides standard features like dual channels, 31 1/3 octave bands, ISO frequency centers, +/- 12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other insightful features. These include 45 mm faders; selectable +/-6dB or +/-15dB boost/cut range for precise gain adjustments; XLR, barrier strip, and 1/4'' TRS connectors for installation ease; balanced inputs and outputs for quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 12 Series makes your job easier.

The dbx 12 Series Equalizers were precision engineered to provide years of maintenance-free operation in any application. The magnetically isolated transformer, electronically balanced/unbalanced inputs and servo balanced/unbalanced outputs, RF-filtered inputs and outputs, and power-off hard-wire relay bypass with 2-second power-up delay were steps our engineers took to ensure compatibility for all installations. Only the best components were utilized, yielding a 10Hz to 50kHz frequency response, greater than 90dB SNR (ref +4dBu), less than 0.005% THD +Noise (1kHz at +4dBu), and interchannel crosstalk of less than -80dB from 20Hz to 20kHz. All this attention to detail is contained in a 3U steel/aluminum chassis.

Recommended for: Portable, Tour.

Features

• Switchable boost/cut ranges of ±6 or ±15 dB
• Electronically balanced/unbalanced inputs
• Servo-balanced/unbalanced outputs
• RF-filtered inputs and outputs

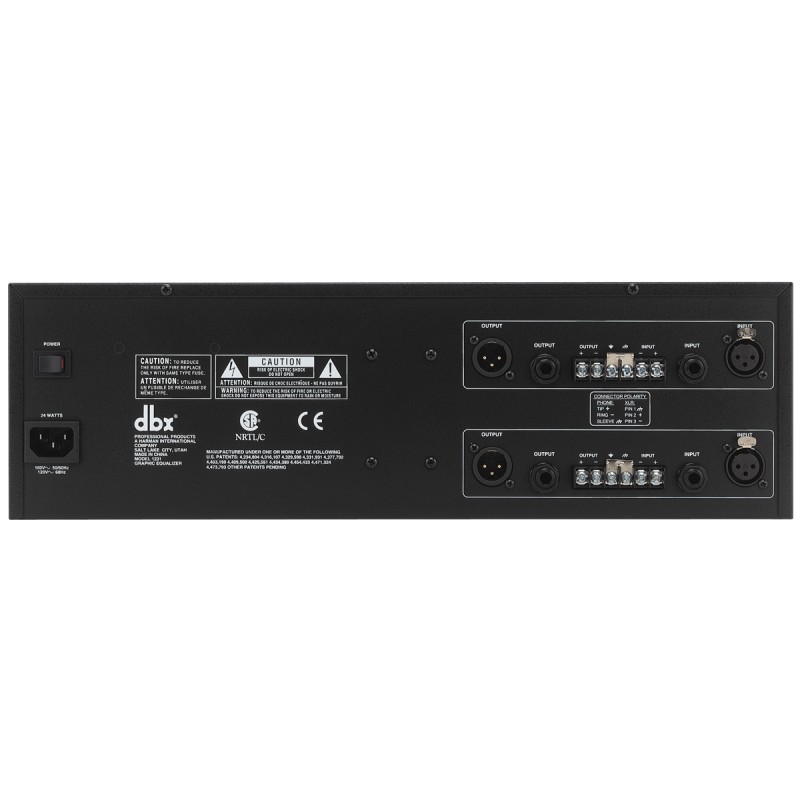

• XLR, Barrier Strip, and 1/4" TRS connectors
• -12dB/+12dB input gain range
• 18dB/octave 40Hz Bessel low-cut filter
• Chassis/signal ground lift capability
• Internal power supply transformer
• Power-off hardwire relay bypass with 2-second power-up delay
