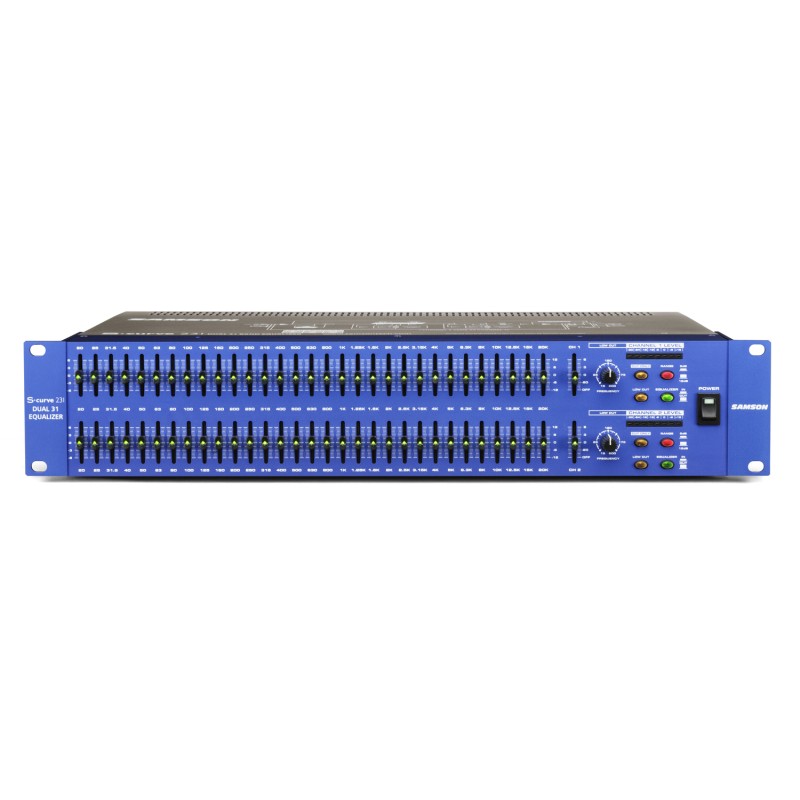

Samson S-Curve 231 - Graphic Equalizer

Dual 31-Band, 1/3 Octave Graphic Equalizer

A totally comprehensive, feature-rich dual 31-band EQ for the most demanding live or studio applications.

The unit is perfect for most demanding live or studio applications and features low cut filters and bypass modes. Eight-segment LED bar meters display the input level and balanced XLR and TRS inputs and outputs provide flexible connectivity.

Features

• Dual channel, thirty-one band per channel graphic equalizer with each frequency band representing 1/3 octave in the 20Hz to 20kHz range.
• Constant Q circuitry ensures that the bandwidth of the selected frequency area stays the same even when approaching maximum boost or attenuation. As a result, phase shifting and inter-modulation distortion is greatly reduced.
• The S curve 231 can be set for either 6dB or 12dB of gain and attenuation for each of the frequency bands
• For monitor applications, "CUT ONLY" mode provides up to 12dB of attenuation with full slider range.
• Variable low cut filter for removing rumble and floor noise can be adjusted from 15Hz to 200Hz.
• Front panel hard-wired, relay controlled bypass switches (with dedicated bypass LEDs) allow the equalization circuitry and output level control to be activated or deactivated.
• Level controls enable output signals to be attenuated or boosted for optimum signal-to-noise ratio.
• Relay power-on circuitry prevents speaker "thumps" when the unit is turned on
• LED faders and LED bar VU meters
• Ultra-low noise circuitry ensures superb audio fidelity
• Electronically balanced XLR and TRS inputs and outputs
• Internal power supply ensures reliability and trouble-free operation
• All-steel chassis
