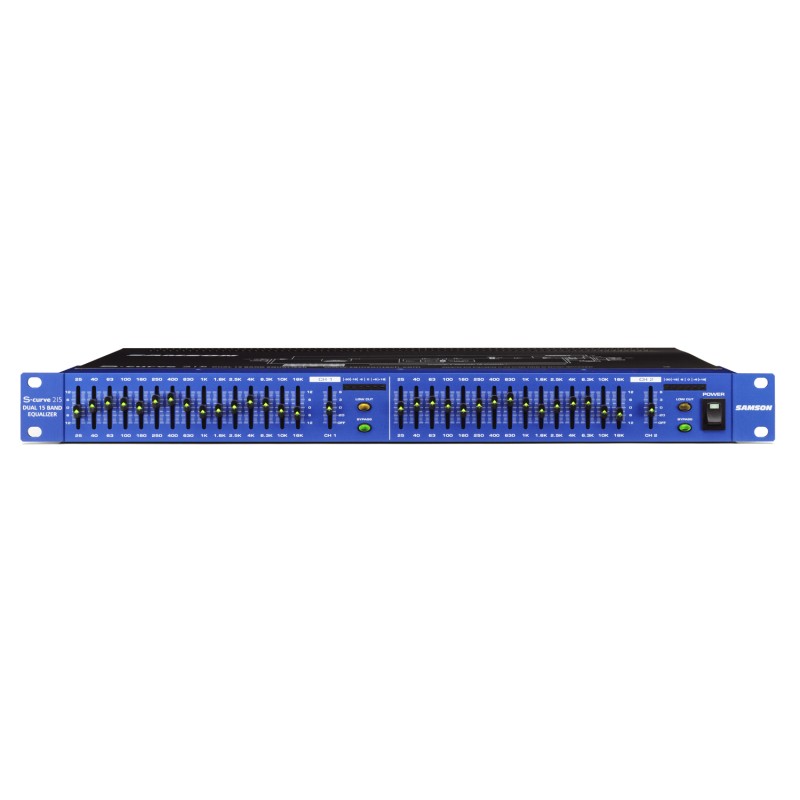

Samson S-Curve 215 - Graphic Equalizer

Dual 15-Band, 2/3 Octave Graphic Equalizer

The S Curve 215 is a professional quality signal processor that gives you precise tonal control over two channels of audio. Center-detented sliders with LED illumination allow you to selectively cut or boost selected frequency areas by as much as 12 dB. Front panel controls include output level sliders, lowcut, and bypass switches, while the rear panel provides electronically balanced inputs and outputs. Thanks to low noise circuitry, the S Curve 215 can be used in a wide variety of applications, including live performance (in conjunction with either Front Of House or monitor mixers), in broadcast environments, or for recording.

The unit features low cut filters and bypass modes. Six-segment LED bar meters display the input level and balanced XLR and TRS inputs and outputs provide flexible connectivity.

• Dual channel, fifteen band per channel graphic equalizer with each frequency band representing 2/3 octave in the 25Hz to 16kHz range
• Dual channel operation for processing either a stereo signal or two independent monophonic signals
• 12dB of boost and cut for each of the frequency bands
• Switchable 80Hz low cut filter for removing rumble and floor noise
• Front panel hard-wired, relay controlled bypass switches (with dedicated bypass LEDs) allow the equalization circuitry and output level control to be activated or deactivated
• Level controls enable output signals to be attenuated or boosted for optimum signal-to-noise ratio
• Relay power-on circuitry prevents speaker "thumps" when the unit is turned on
• LED faders and LED bar VU meters
• Ultra-low noise circuitry ensures superb audio fidelity
• Electronically balanced XLR and TRS inputs and outputs
• Internal power supply ensures reliability and trouble-free operation
• All-steel chassis
