JBL CSMA 280 Powered Mixer

The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown’s DriveCore technology enables significantly reduced size and weight – all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single-channel and two-channel models with four or eight mixer channels, respectively.

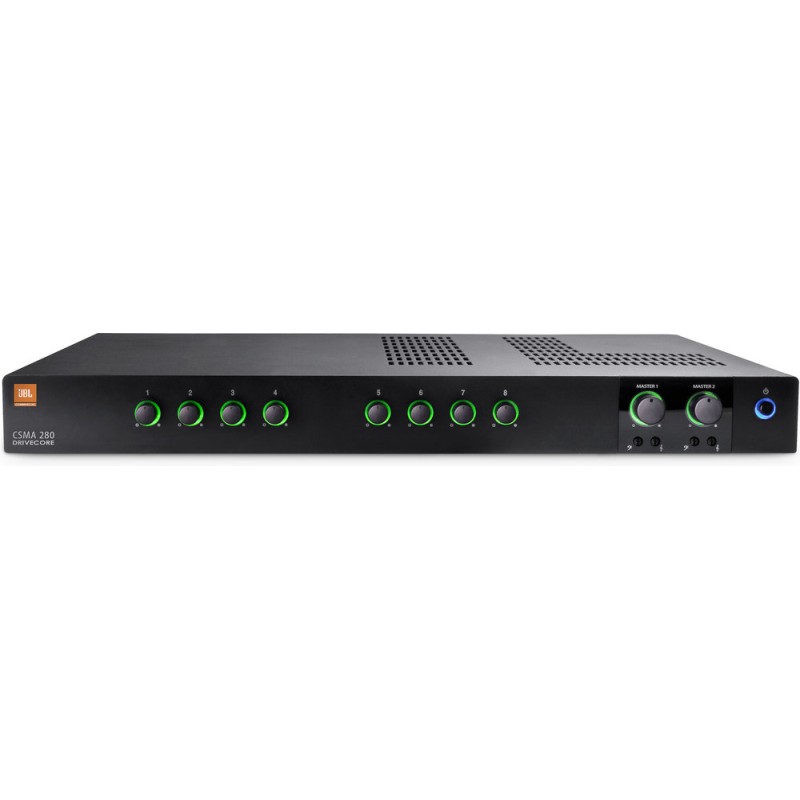

The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls, and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4-ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs, and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply that enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

JBL Commercial mixer/amps are manufactured under HARMAN’s GreenEdge™ environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation – up to 80 percent more efficient than previous designs.

Features

• 8 inputs with 2 outputs of 80 watts of power
• Ideal for commercial and industrial use
• Fanless, space-saving 1U design
• Sleek industrial look with illuminated rings, making them easy to see and operate
• Euro-block type mic/line input connectors and output connectors
• Independent Bass and Treble controls for each output channel
• Supports 70V and 100V distributed audio systems without the need for a separate transformer
• Remote volume control capability using JBL CSR-V module and standard Ethernet cable
• Priority muting
• Configurable output routing
• Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency
• Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
• Includes rack mounting kit
• Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
• Energy Star® Certified
