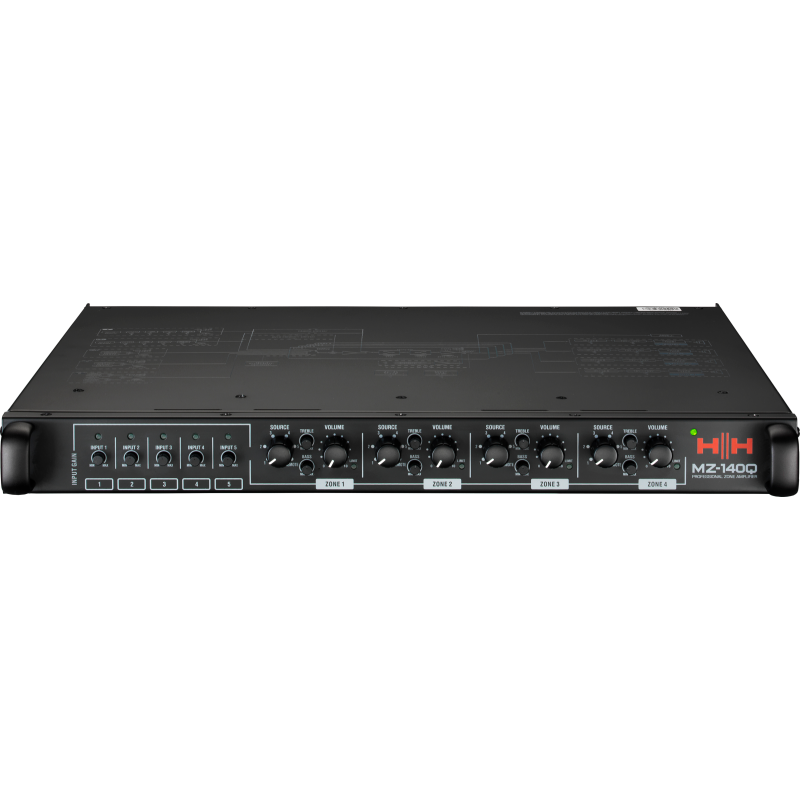

HH Electronics MZ-140Q Four Zone Matrix Power Amplifier

MZ-140Q

This features four individual 140 Watt RMS Class D power amplifiers and each amplifier can be configured to run 70/100 Volt or at minimum 4Ohm impedance. Each amplifier is a zone, and there are front panel controls for volume, two band eq, and source selection per zone. There are five flexible input channels, each with a front panel mounted to gain trim control.

Dual combi microphone inputs allow two individual mics to be connected simultaneously both with auto or manual priority modes. Built-in a full-size 1U rack case, the unit is extremely robust with easily operable controls. Front 'scribble' strips allow the installer to easily identify each zone and input identification. The perfect installation amplifier for retail, leisure, café, bars, and halls.

• 4 Zone amplifier
• 4x 140 Watts RMS power output
• Supports 70/100V or min 4 Ohm impedance speaker outputs (configurable per zone)
• 5 comprehensive audio input channels
• Independent bass and treble EQ adjustment on each zone
• Compact space-saving 1U design (rack-mountable)
• Universal ~100-240V worldwide operation
• Remote volume control capability using HH MZ-C2 module and standard ethernet cable
